Frame:Welded construction using solid steel channel main frame members and structural steel cross members.

Weight:47,200 lbs.

Engine:Caterpillar C7.1, 250 hp @ 2200 rpm Tier IV Final

Propel System:Two (2) speed powershift transmission driven by Danfoss variable displacement pump and motor. Propel system uses electric valve to prevent engine overspeed. Single control handle controls speed and direction in each range. Speed switch to prevent downshifting when speed is too high. Maximum speed is 35 mph.

Transmission and Axles:Propel motor powers a 2-speed “shift on the go” transmission. Two (2) spring-mounted industrial type axles equipped with no spin differential. Nine (9) leaf spring suspension. Two piece drive shaft with 6C yokes. Drive shaft guards standard.

Wheels and Brakes:28” cast steel wheels bolted to each axle, clasp cobra brakes (two shoes per wheel). Service brakes; air applied/spring released. Parking brakes; spring applied/air released.

Wings:Wing lift cylinders are A-frame mounted above wing for accessibility. A-frame is tiltable for access to transmission. Wing templates incorporate shear pin design to prevent damage. Optional articulating templates.

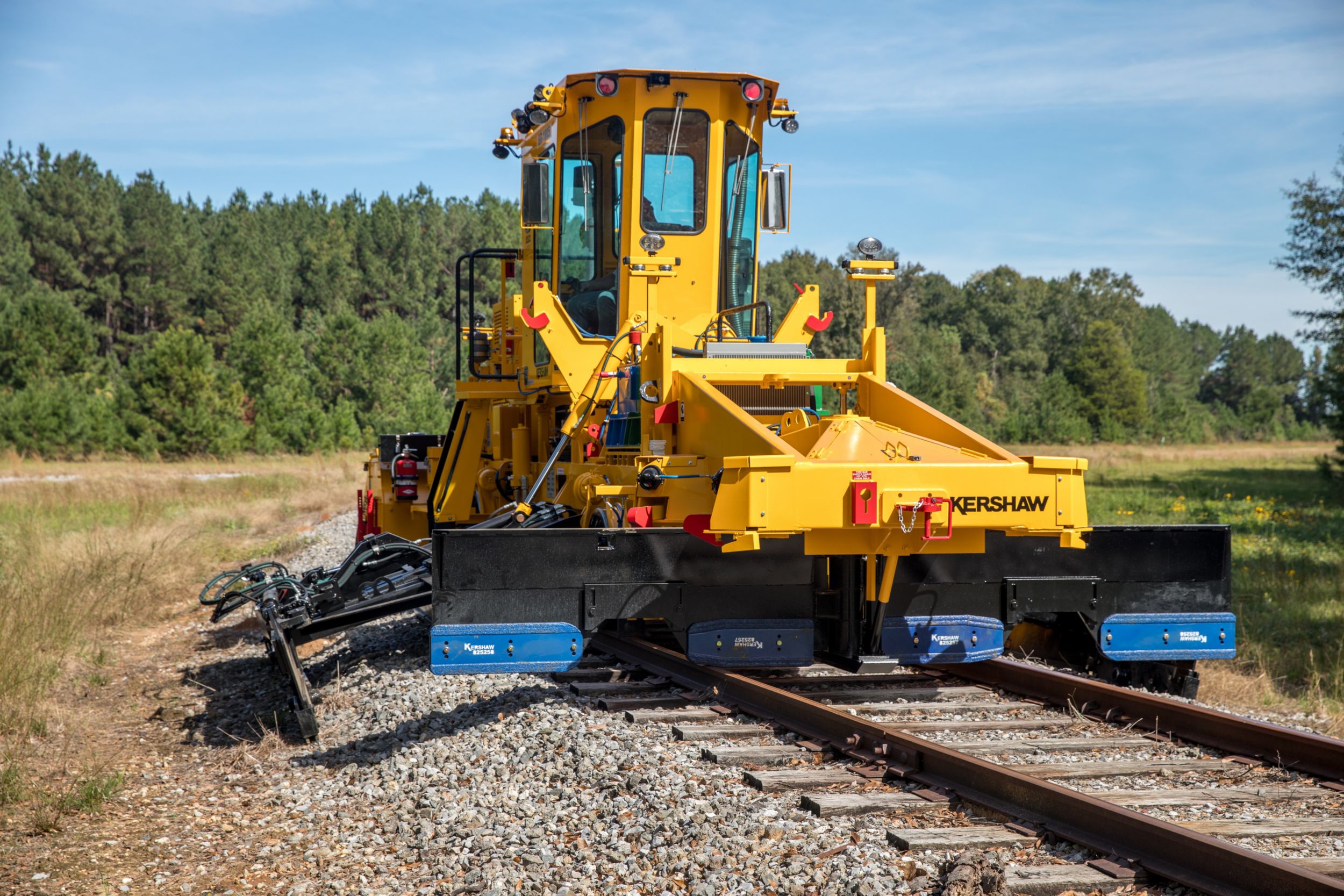

Plow:One pass transfer plow standard with 1-inch thick T1 steel blades. Horizontal, double acting locks.

Broom:Model 27-12 fully-reversible belt-driven broom with horizontal double acting locks. Round broom housing available for increased efficiency. Housing designed to allow broom reel to drop straight down for easy and safe removal. Deflectors have lifting eyes for safe and easy removal in the field.

Electrical System:24 volt dc negative ground with 115 amp alternator. LED lights available as an option.

Air System:Air compressor, engine oil lubricated, cam shaft driven, water-cooled, 15.2 cfm free air volume @ 1250 rpm. System pressure is 100-120 psi with 613 in.3 air tank. Service brakes are controlled by a pressure reducing valve and the parking brakes by a manually-operated dump valve. System is also equipped with a dual tone air horn, safety relief valve.

Hydraulic System:Engine-powered double pump drive. Pressure compensated Sauer Danfoss pump for cylinder functions. Gear pump for broom motor drive. Emmegi plate oil cooler and Danfoss control valves. Return filters built into the hydraulic tank. Electric emergency pump to operate selected circuits. Pressure filters optional.

Cab:Fully enclosed, insulated, safety glass, dome light, front windshield wiper and pivoting seat. Single operator with electrical joystick controls. Cab mounted with Lord iso mounts. Cab access from either side of machine. Rear entry with removable walkway for access to pump. Rear cab wall mounted self-contained air conditioner. Optional cab tilt.

Fluid Tanks:Fuel and hydraulic tanks mounted at front of frame for easy access. Fuel tank capacity is 120 gallons. Hydraulic tank capacity is 100 gallons.
