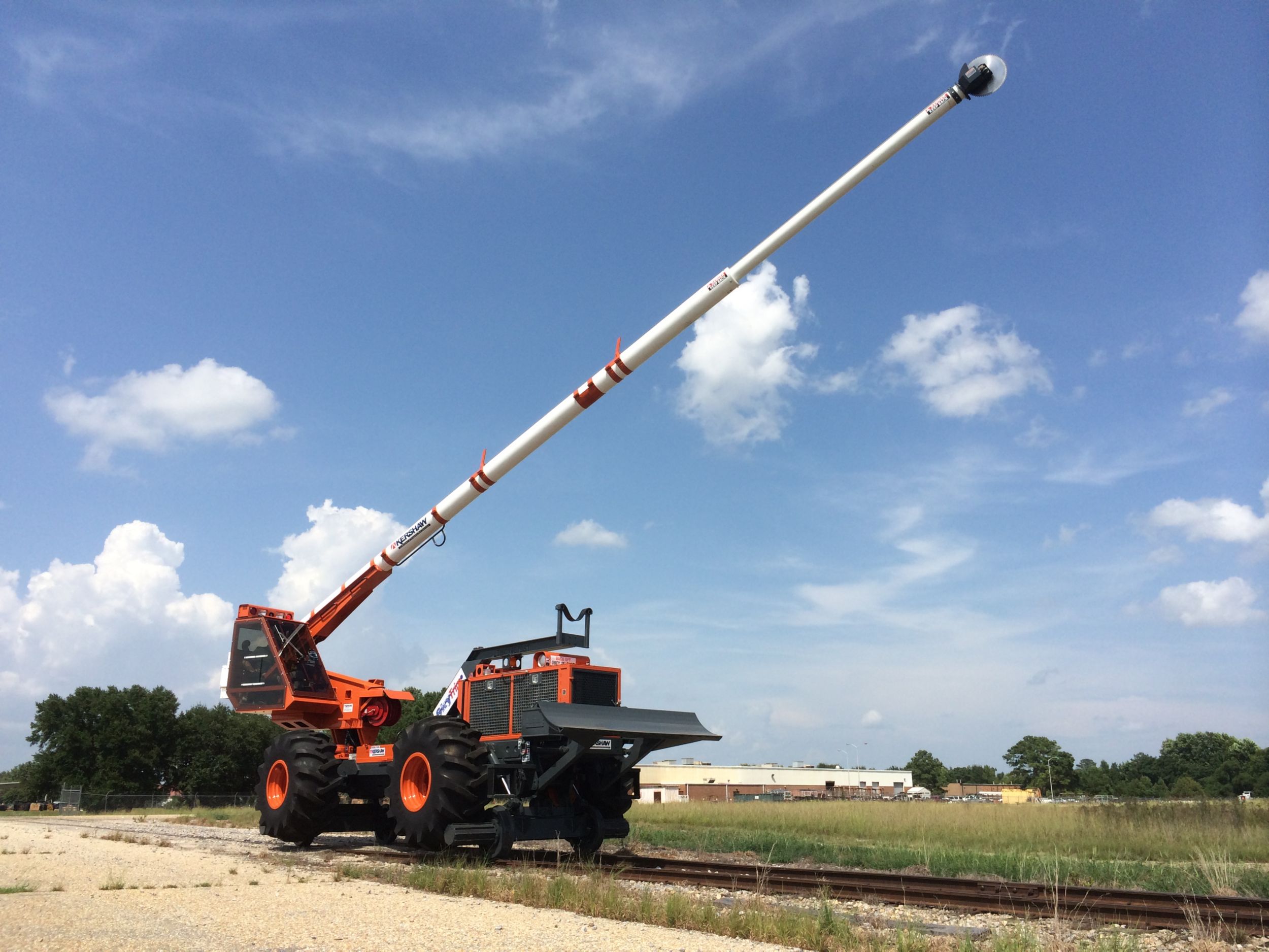

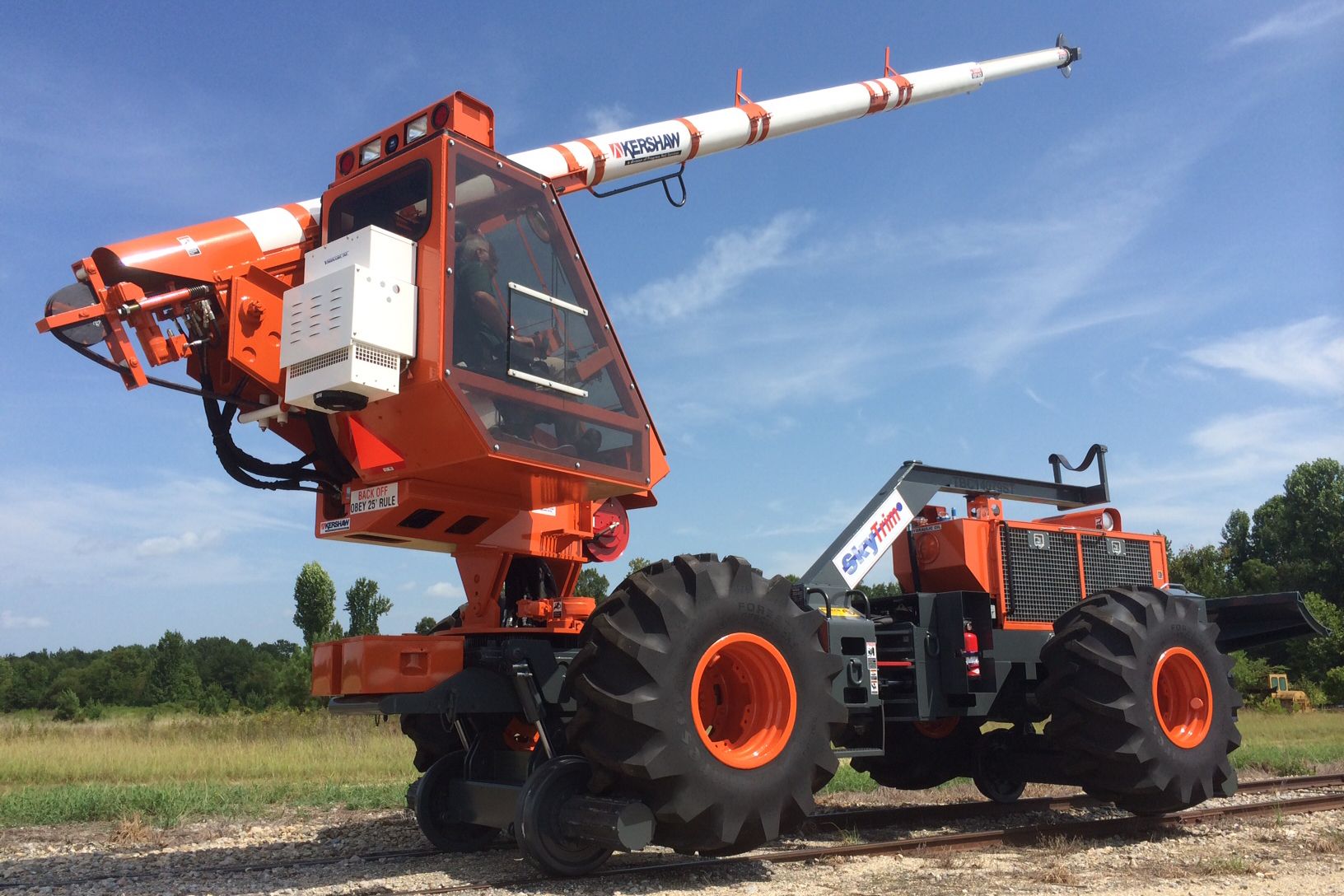

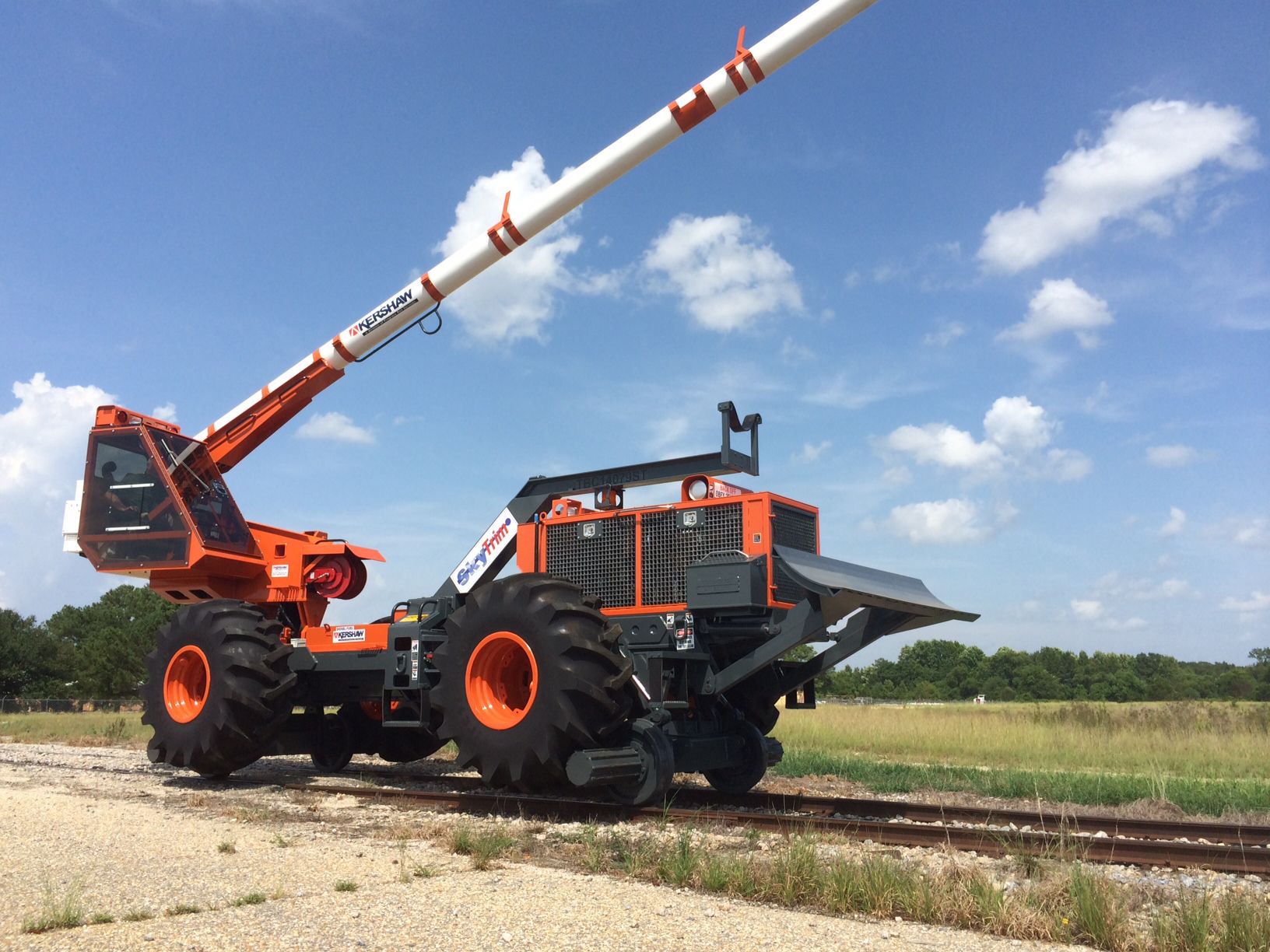

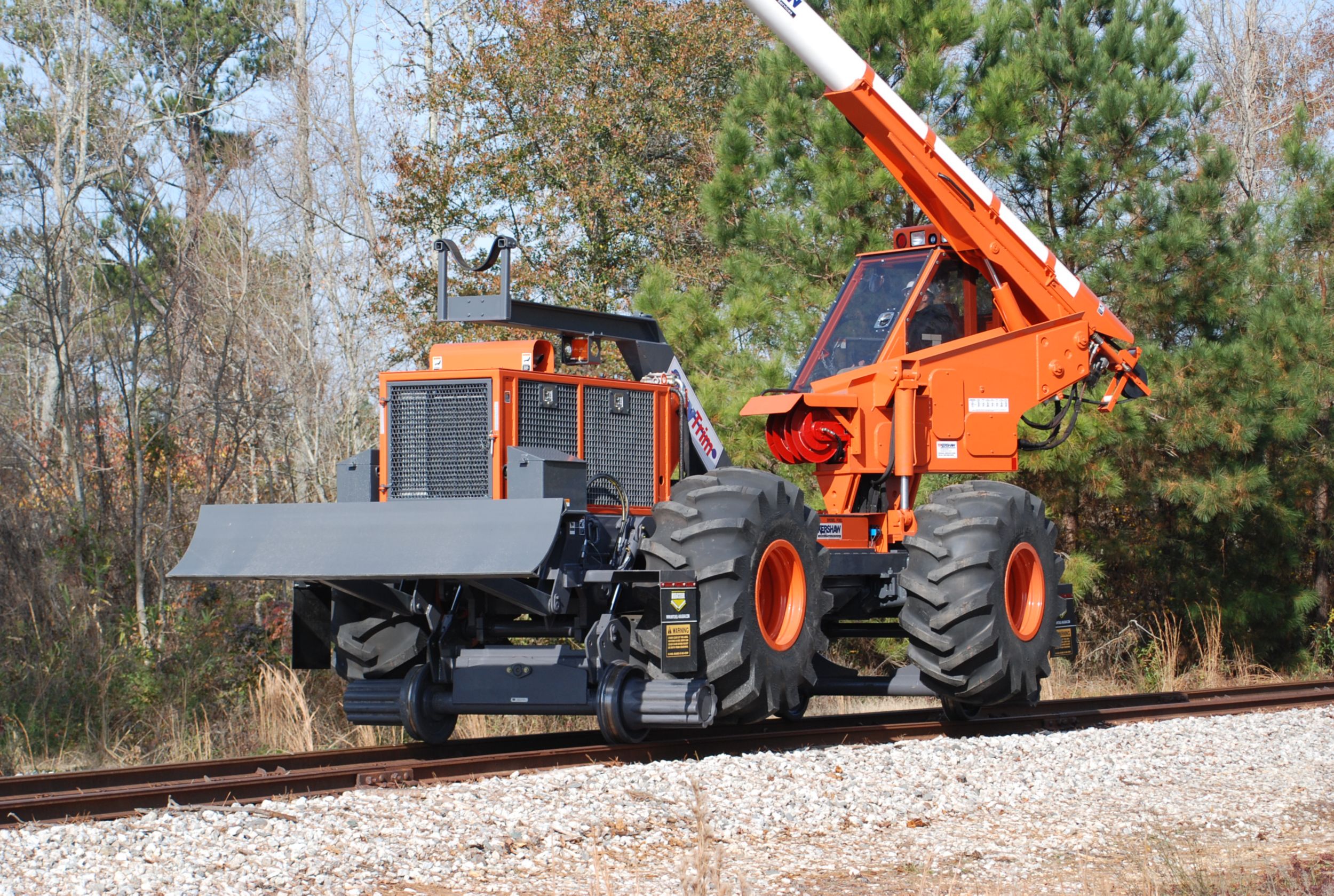

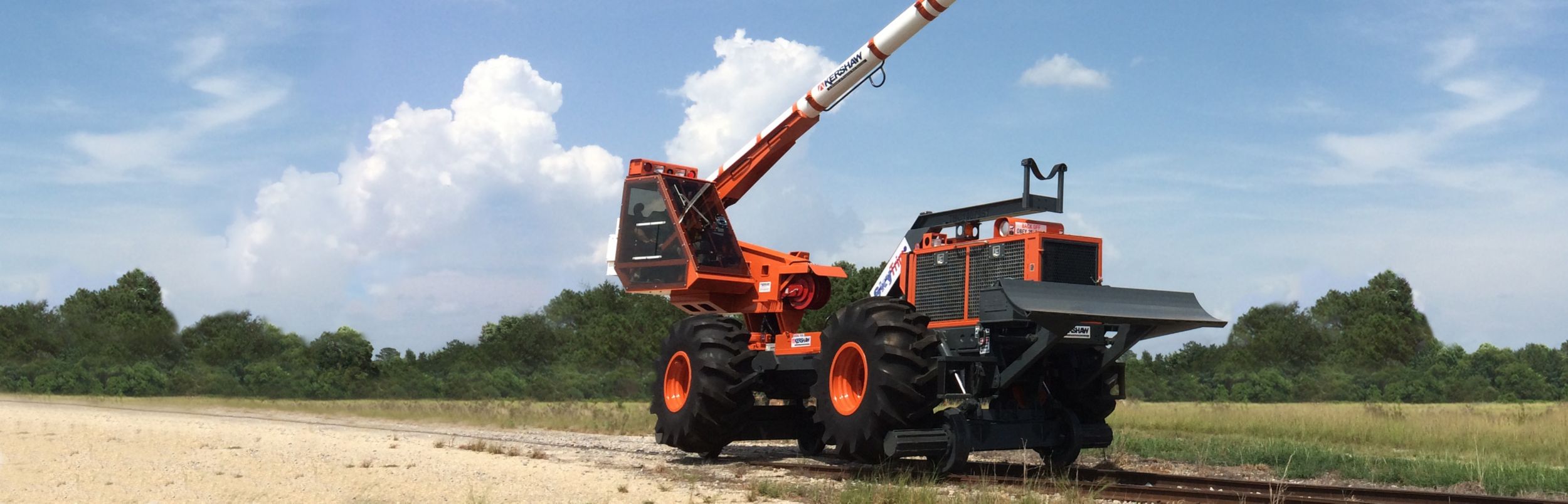

Kershaw®Skytrim75G3 Hi Rail

Weight:大约33,700磅。

引擎：配备液冷4.4升Caterpillar^®diesel engine rated for 131 hp (97.9 kw) @ 2200 rpm and compliant with European Union Stage V and EPA Tier 4 Final regulations. Open engine compartment for maximum accessibility.

Propel System:静液压推进电机通过重型2速动力换档变速箱驱动，带有脚踏开关以启动差速锁。

Transmission and Axles:双速移动式变速器，由重型驱动轴连接到两个轴上。重型履带^®axles with inboard wet disc service brakes. Rear axle is rigid mounted, front axle designed to oscillate. Equipped with a foot switch to activate differential lock.

Wheels, Tires and Brakes:Tires: 28L-26 logger type tire standard. Service brakes are wet disc inboard hydraulically applied and “built-in” the axles. Parking brakes are fail-safe spring applied/hydraulic-released wet disc driveline mounted. Parking brakes will automatically apply if engine stops or hydraulic system pump fails.

液压系统：Engine driven pump drive. Hydrostatic propel system consists of closed loop pump driving a hydraulic propel motor mounted on transmission Charge loop filtration. Hydraulic reservoir mounted at the rear of engine compartment with cleanout port and shutoff valve. Equipped with electric emergency pump. Upper structure tilt system, rotate system, and boom up/down system equipped with lock valves.

电子系统：24伏直流负极接地，带发动机驱动交流发电机和两个12伏蓄电池，每个蓄电池带1000冷起动电流。配备CE照明组件和安全功能.

能力：

• 燃料：90加仑。（340.7升）
• 液压：13 gal. (49.21 liters)

出租车：配备1 1/4“有色Lexgard^®顶部，发动机仪器和符合人体工程学座椅。配有灯触摸液压试验压力操纵杆，用于延伸升降倾斜吊杆吊杆，凸镜，次射出，标准刮水器和A / C和加热控制台。重型摆动轴承蜗杆齿轮驱动，可用于最大齿啮合。地板完全封闭。门门是全长着色的lexgard^®积极闩锁。

繁荣：伸缩复合结构，距地面75英尺（22.86米）。伸缩臂由#50链条驱动。每个单元都是电气绝缘的，并按照ANSI A92.2-2001 C类标准进行测试，达到100 kv，以最大限度地保护操作员的安全。配备单个直径为24英寸（609.6mm）的硬质合金圆锯，转速为2800 rpm。

FRA兼容功能：Travel lights, horn, backup alarm, brake lights, first aid kit and fire extinguisher. Includes side inclinometer to warn operator of superelevated curves and steering lockout for hi rail operation.

Optional Equipment:Front mounted winch, tire sizes and type, and grapple. Additional options available upon request.

2 Fire extinguishers and back up camera is now standard on CE and the standard model.
